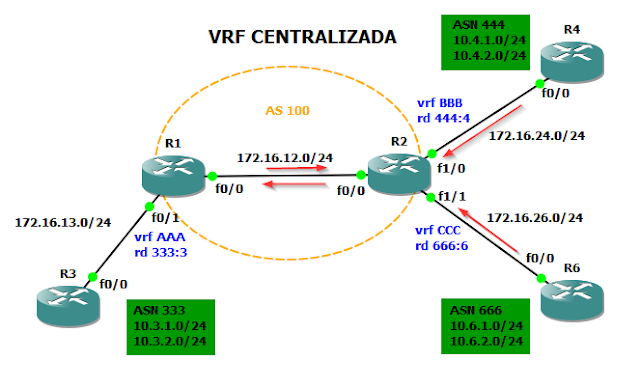

El concepto de de vrf centralizada requiere que se utilice una vrf que permita interconectar varias vrfs clientes pero con la restricción de que cada una de ellas solo podrá aprender las redes de la VRF centralizada y no de las demás vrfs.
Para aclararlo mejor la vrf AAA es la centralizada, la vrf BBB y vrf CCC son las vrf clientes.
Entre BBB y CCC no se aprenden rutas.
R1
hostname R1
!
! Es necesario utilizar un segundo RT para exportar o importar
! lo importante es que en los clientes se configure al contrario.
!
ip vrf AAA
rd 333:3
route-target export 333:3
route-target import 111:1
!
interface Loopback0
ip address 172.16.0.1 255.255.255.255
ip ospf 1 area 0
!
interface FastEthernet0/0
ip address 172.16.12.1 255.255.255.0
ip ospf network point-to-point
ip ospf 1 area 0
mpls ip
!
interface FastEthernet0/1
ip vrf forwarding AAA
ip address 172.16.13.1 255.255.255.0
!
router ospf 1
log-adjacency-changes
!
router bgp 100
bgp router-id 172.16.0.1
no bgp default ipv4-unicast
no bgp default route-target filter
bgp log-neighbor-changes
neighbor 172.16.0.2 remote-as 100
neighbor 172.16.0.2 update-source Loopback0
!
address-family vpnv4
neighbor 172.16.0.2 activate
neighbor 172.16.0.2 send-community extended
exit-address-family
!
address-family ipv4 vrf AAA
redistribute connected
neighbor 172.16.13.3 remote-as 333
neighbor 172.16.13.3 activate
no synchronization
exit-address-family
!
end
!
! Es necesario utilizar un segundo RT para exportar o importar
! lo importante es que en los clientes se configure al contrario.
!
ip vrf AAA
rd 333:3
route-target export 333:3
route-target import 111:1
!
interface Loopback0
ip address 172.16.0.1 255.255.255.255
ip ospf 1 area 0
!
interface FastEthernet0/0
ip address 172.16.12.1 255.255.255.0
ip ospf network point-to-point
ip ospf 1 area 0
mpls ip
!
interface FastEthernet0/1
ip vrf forwarding AAA
ip address 172.16.13.1 255.255.255.0
!
router ospf 1
log-adjacency-changes
!
router bgp 100
bgp router-id 172.16.0.1
no bgp default ipv4-unicast
no bgp default route-target filter
bgp log-neighbor-changes
neighbor 172.16.0.2 remote-as 100
neighbor 172.16.0.2 update-source Loopback0
!
address-family vpnv4
neighbor 172.16.0.2 activate
neighbor 172.16.0.2 send-community extended
exit-address-family
!
address-family ipv4 vrf AAA
redistribute connected
neighbor 172.16.13.3 remote-as 333
neighbor 172.16.13.3 activate
no synchronization
exit-address-family
!
end
R2
hostname R2
!
! configrar los RT en sentido contrario a los de la vrf centralizada
ip vrf BBB
rd 444:4
route-target export 111:1
route-target import 333:3
!
ip vrf CCC
rd 666:6
route-target export 111:1
route-target import 333:3
!
interface Loopback0
ip address 172.16.0.2 255.255.255.255
ip ospf 1 area 0
!
interface FastEthernet0/0
ip address 172.16.12.2 255.255.255.0
ip ospf network point-to-point
ip ospf 1 area 0
mpls ip
!
interface FastEthernet1/0
ip vrf forwarding BBB
ip address 172.16.24.2 255.255.255.0
!
interface FastEthernet1/1
ip vrf forwarding CCC
ip address 172.16.26.2 255.255.255.0
!
router ospf 1
log-adjacency-changes
!
router bgp 100
bgp router-id 172.16.0.2
no bgp default ipv4-unicast
no bgp default route-target filter
bgp log-neighbor-changes
neighbor 172.16.0.1 remote-as 100
neighbor 172.16.0.1 update-source Loopback0
!
address-family vpnv4
neighbor 172.16.0.1 activate
neighbor 172.16.0.1 send-community extended
exit-address-family
!
address-family ipv4 vrf CCC
redistribute connected
neighbor 172.16.26.6 remote-as 666
neighbor 172.16.26.6 activate
no synchronization
exit-address-family
!
address-family ipv4 vrf BBB
redistribute connected
neighbor 172.16.24.4 remote-as 444
neighbor 172.16.24.4 activate
no synchronization
exit-address-family
!
end
!
! configrar los RT en sentido contrario a los de la vrf centralizada
ip vrf BBB
rd 444:4
route-target export 111:1
route-target import 333:3
!
ip vrf CCC
rd 666:6
route-target export 111:1
route-target import 333:3
!
interface Loopback0
ip address 172.16.0.2 255.255.255.255
ip ospf 1 area 0
!
interface FastEthernet0/0
ip address 172.16.12.2 255.255.255.0
ip ospf network point-to-point
ip ospf 1 area 0
mpls ip
!
interface FastEthernet1/0
ip vrf forwarding BBB
ip address 172.16.24.2 255.255.255.0
!
interface FastEthernet1/1
ip vrf forwarding CCC
ip address 172.16.26.2 255.255.255.0
!
router ospf 1
log-adjacency-changes
!
router bgp 100
bgp router-id 172.16.0.2
no bgp default ipv4-unicast
no bgp default route-target filter
bgp log-neighbor-changes
neighbor 172.16.0.1 remote-as 100
neighbor 172.16.0.1 update-source Loopback0
!
address-family vpnv4
neighbor 172.16.0.1 activate
neighbor 172.16.0.1 send-community extended
exit-address-family
!
address-family ipv4 vrf CCC
redistribute connected
neighbor 172.16.26.6 remote-as 666
neighbor 172.16.26.6 activate
no synchronization
exit-address-family
!
address-family ipv4 vrf BBB
redistribute connected
neighbor 172.16.24.4 remote-as 444
neighbor 172.16.24.4 activate
no synchronization
exit-address-family
!
end
R3
hostname R3
!
interface Loopback1
ip address 10.3.1.1 255.255.255.0
!
interface Loopback2
ip address 10.3.2.1 255.255.255.0
!
interface FastEthernet0/0
ip address 172.16.13.3 255.255.255.0
!
router ospf 1
log-adjacency-changes
!
router bgp 333
no synchronization
bgp router-id 172.16.13.3
bgp log-neighbor-changes
network 10.3.1.0 mask 255.255.255.0
network 10.3.2.0 mask 255.255.255.0
neighbor 172.16.13.1 remote-as 100
no auto-summary
!
end
!
interface Loopback1
ip address 10.3.1.1 255.255.255.0
!
interface Loopback2
ip address 10.3.2.1 255.255.255.0
!
interface FastEthernet0/0
ip address 172.16.13.3 255.255.255.0
!
router ospf 1
log-adjacency-changes
!
router bgp 333
no synchronization
bgp router-id 172.16.13.3
bgp log-neighbor-changes
network 10.3.1.0 mask 255.255.255.0
network 10.3.2.0 mask 255.255.255.0
neighbor 172.16.13.1 remote-as 100
no auto-summary
!
end
R4
hostname R4
!
interface Loopback1
ip address 10.4.1.1 255.255.255.0
!
interface Loopback2
ip address 10.4.2.1 255.255.255.0
!
interface FastEthernet0/0
ip address 172.16.24.4 255.255.255.0
!
router bgp 444
no synchronization
bgp router-id 172.16.24.4
bgp log-neighbor-changes
network 10.4.1.0 mask 255.255.255.0
network 10.4.2.0 mask 255.255.255.0
neighbor 172.16.24.2 remote-as 100
no auto-summary
!
end
!
interface Loopback1
ip address 10.4.1.1 255.255.255.0
!
interface Loopback2
ip address 10.4.2.1 255.255.255.0
!
interface FastEthernet0/0
ip address 172.16.24.4 255.255.255.0
!
router bgp 444
no synchronization
bgp router-id 172.16.24.4
bgp log-neighbor-changes
network 10.4.1.0 mask 255.255.255.0
network 10.4.2.0 mask 255.255.255.0
neighbor 172.16.24.2 remote-as 100
no auto-summary
!
end
R6
hostname R6
!
interface Loopback1
ip address 10.6.1.1 255.255.255.0
!
interface Loopback2
ip address 10.6.2.1 255.255.255.0
!
interface FastEthernet0/0
ip address 172.16.26.6 255.255.255.0
duplex auto
speed auto
!
router bgp 666
no synchronization
bgp router-id 172.16.26.6
bgp log-neighbor-changes
network 10.6.1.0 mask 255.255.255.0
network 10.6.2.0 mask 255.255.255.0
neighbor 172.16.26.2 remote-as 100
no auto-summary
!
end
!
interface Loopback1
ip address 10.6.1.1 255.255.255.0
!
interface Loopback2
ip address 10.6.2.1 255.255.255.0
!
interface FastEthernet0/0
ip address 172.16.26.6 255.255.255.0
duplex auto
speed auto
!
router bgp 666
no synchronization
bgp router-id 172.16.26.6
bgp log-neighbor-changes
network 10.6.1.0 mask 255.255.255.0
network 10.6.2.0 mask 255.255.255.0
neighbor 172.16.26.2 remote-as 100
no auto-summary
!
end
PRUEBAS
vrf AAA aprende todas la redes.
R1#sh ip route vrf AAA
172.16.0.0/24 is subnetted, 3 subnets
B 172.16.24.0 [200/0] via 172.16.0.2, 00:01:03
B 172.16.26.0 [200/0] via 172.16.0.2, 00:00:03
C 172.16.13.0 is directly connected, FastEthernet0/1
10.0.0.0/24 is subnetted, 6 subnets
B 10.3.1.0 [20/0] via 172.16.13.3, 00:04:32
B 10.3.2.0 [20/0] via 172.16.13.3, 00:04:32
B 10.4.2.0 [200/0] via 172.16.0.2, 00:01:03
B 10.6.1.0 [200/0] via 172.16.0.2, 00:00:49
B 10.6.2.0 [200/0] via 172.16.0.2, 00:00:49
B 10.4.1.0 [200/0] via 172.16.0.2, 00:01:03
R1#
vrf BBB solo aprende la redes de la vrf AAA.
R2(config-vrf)#do sh ip route vrf BBB
Gateway of last resort is not set
172.16.0.0/24 is subnetted, 2 subnets
C 172.16.24.0 is directly connected, FastEthernet1/0
B 172.16.13.0 [200/0] via 172.16.0.1, 00:00:37
10.0.0.0/24 is subnetted, 4 subnets
B 10.3.1.0 [200/0] via 172.16.0.1, 00:00:37
B 10.3.2.0 [200/0] via 172.16.0.1, 00:00:37
B 10.4.2.0 [20/0] via 172.16.24.4, 00:00:37
B 10.4.1.0 [20/0] via 172.16.24.4, 00:00:37
vrf CCC solo aprende la redes de la vrf AAA.
R2(config)#do sh ip route vrf CCC
Gateway of last resort is not set
172.16.0.0/24 is subnetted, 2 subnets
C 172.16.26.0 is directly connected, FastEthernet1/1
B 172.16.13.0 [200/0] via 172.16.0.1, 00:01:25
10.0.0.0/24 is subnetted, 4 subnets
B 10.3.1.0 [200/0] via 172.16.0.1, 00:01:25
B 10.3.2.0 [200/0] via 172.16.0.1, 00:01:25
B 10.6.1.0 [20/0] via 172.16.26.6, 00:01:25
B 10.6.2.0 [20/0] via 172.16.26.6, 00:01:25
